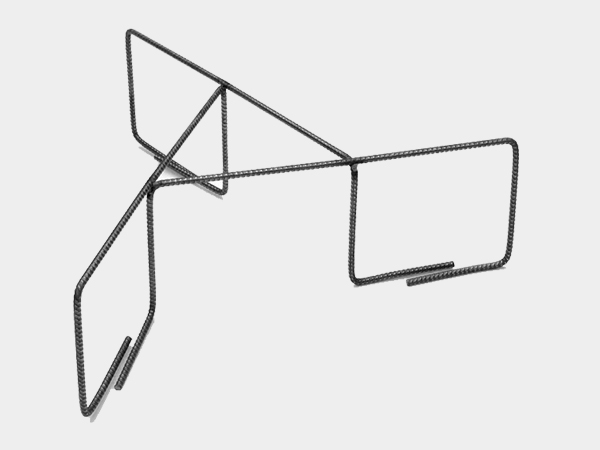

HÜWA-Distanzbock
Large-surface supporting steel spacer for water impermeable concrete components. Contactless fitting to the component surface. Weight has to be accounted with reinforcement steel (acc. VOB). Support diameter approx 500 mm, support surface runs in line. Qualified for ceiling and wall reinforcements. High stability by use of 6 mm steel.

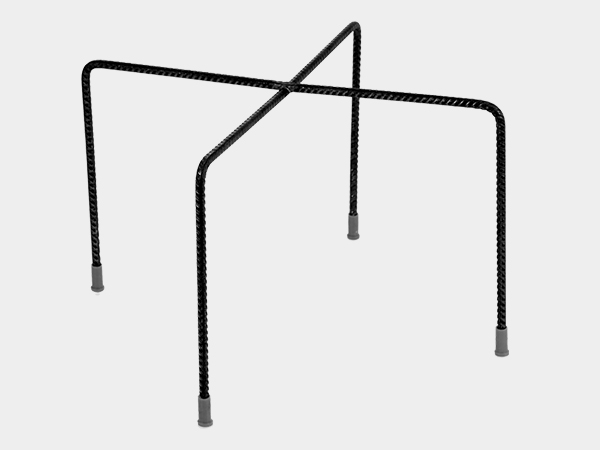

If you need of spacers for component activation , we recommend HÜWA-Bock 400 (Six leg) or HÜWA-Bock 300 (four leg) .
Weight list
Artikel-Nr. Article No. | Höhe mm Height mm | Gewicht kg / 100 St. Weight kg / 100 pcs | Gewicht kg / Sack Weight kg / sack | Stück je Sack Pieces per sack |
8504111 | 80 | 33,70 | 16,85 | 50 |
8504113 | 90 | 34,20 | 17,10 | 50 |
8504115 | 100 | 34,80 | 17,40 | 50 |
8504117 | 110 | 35,90 | 17,95 | 50 |
8504119 | 120 | 37,30 | 18,65 | 50 |
8504121 | 130 | 38,70 | 19,35 | 50 |
8504123 | 140 | 40,20 | 20,10 | 50 |
8504125 | 150 | 42,00 | 21,00 | 50 |
8504127 | 160 | 42,80 | 21,40 | 50 |
8504129 | 170 | 49,10 | 24,55 | 50 |
8504131 | 180 | 55,50 | 27,75 | 50 |
8504133 | 190 | 56,00 | 28,00 | 50 |
8504135 | 200 | 57,30 | 28,65 | 50 |
8504137 | 210 | 57,50 | 28,75 | 50 |
8504139 | 220 | 58,50 | 29,25 | 50 |
8504141 | 230 | 59,50 | 29,75 | 50 |
8504143 | 240 | 60,50 | 30,25 | 50 |
8504145 | 250 | 61,50 | 30,75 | 50 |
Produkt anfragen Senden Sie uns Ihre Produktanfrage per E-Mail oder per Fax.
Request product price Send us your request via email or fax.
